Daim ntawv thov
Lub tshuab tshuab tuaj yeem siv dav rau ntawm Roj Cell, Cov Khoom Siv Kho Mob,
Air pollution detector, Air sampler, Cua mettress / txaj, Ventilators Etc.
Technical Data
|
Tsis muaj. |
Qauv |
NXK36K351ZA21 |
NXK36L321ZA21 |
|
1 |
Rated voltage (VDC) |
24 |
36 |
|
2 |
Voltage Ntau (VDC) |
20~28 |
32~40 |
|
3 |
Max input zog (W) |
350±5% |
320±5% |
|
4 |
Max. Huab cua (m 3 / min) |
1.05±5% |
1.14±5% |
|
5 |
Max. Static siab (kPa) |
17±5% |
21±5% |
|
6 |
Max. Ceev (rpm / min) |
29000±5% |
35000±5% |
|
7 |
Rwb thaiv tsev Class |
A |
|
|
8 |
Chav kawm tiv thaiv |
IP 00 |
|
|
9 |
Ua hauj lwm hom |
Tsis tu ncua |
|
|
11 |
Kev tswj ceev hom |
0-5V DC |
|
|
12 |
Ua haujlwm ib puag ncig |
Qhov kub thiab txias -15-40 degrees |
|
|
Humidity 15-85% RH Tsis Condensation |
|||
|
13 |
Tshuag Ib puag ncig |
Qhov kub thiab txias -25-45 degrees |
|
|
Humidity 0-90% RH Tsis Muaj Condensation |
|||
Qhov ntev
Factory thiab Products show
|
|
|
|
|
|
|

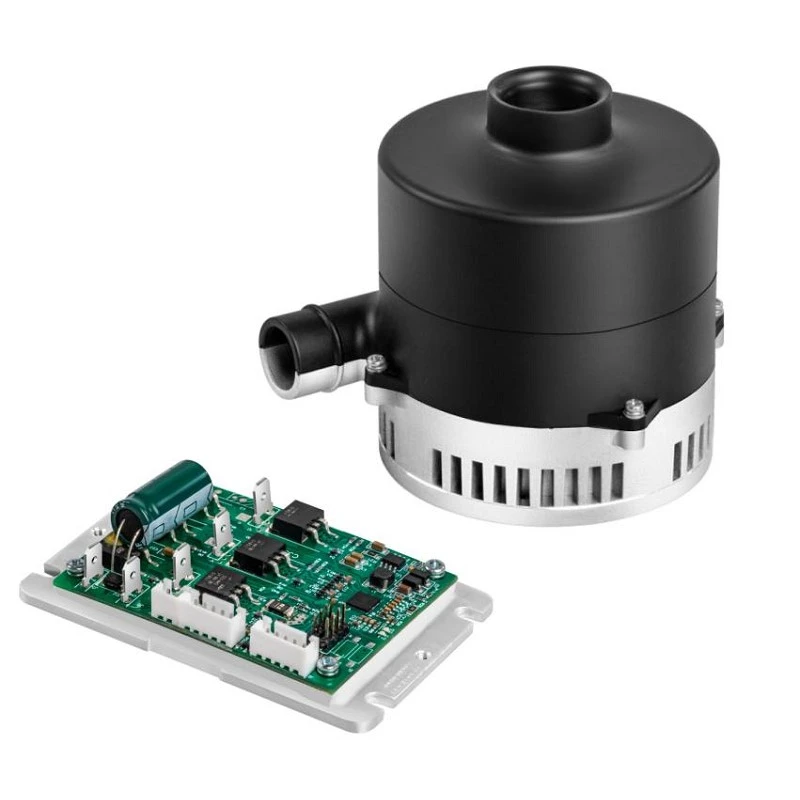

24V 36V Tangential Los Ntawm Pass BLDC Blower rau Cua Mettress
Thaum nws los txog rau lub txaj cua, muaj lub tshuab ua haujlwm ruaj khov thiab ua haujlwm tau zoo yog qhov tseem ceeb rau kev ua kom pw tsaug zog zoo. Qhov ntawd yog qhov twg 24V 36V Tangential By Pass BLDC Blower los rau hauv.
Lub tshuab cua tshuab no yog tsim rau lub txaj cua - xa cov cua muaj zog, ruaj khov tsis muaj suab nrov. Nws kho koj lub txaj sai sai rau qhov kev ruaj khov, yog li koj tau txais kev txhawb nqa zoo txhua lub sijhawm.
Ua nrog tangential los ntawm - dhau tus qauv tsim thiab lub cev muaj zog DC brushless, nws txuag lub zog thiab sawv mus txog rau xyoo ntawm kev siv tsis tu ncua.
Hais lus zoo rau lub suab nrov thiab tsis ntseeg siab - nqis peev hauv 24V 36V Tangential By Pass BLDC Blower kom muaj kev thaj yeeb nyab xeeb thiab pw tsaug zog hmo ntuj ntawm koj lub txaj huab cua.
