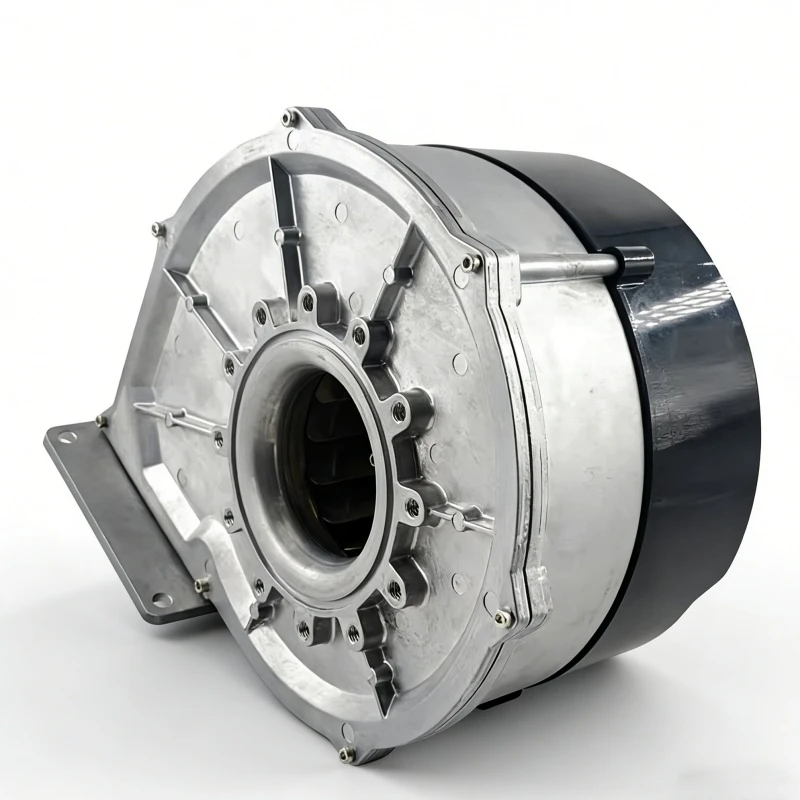

700W 220V Brushless Industrial Blower

Qauv	NXK101-700-GPM 7.0
Rated voltage (VAC)	220
Rated Zaus (Hz)	50/60
Max input zog (W)	700±5%
Max. Tam sim no (A)	3.3

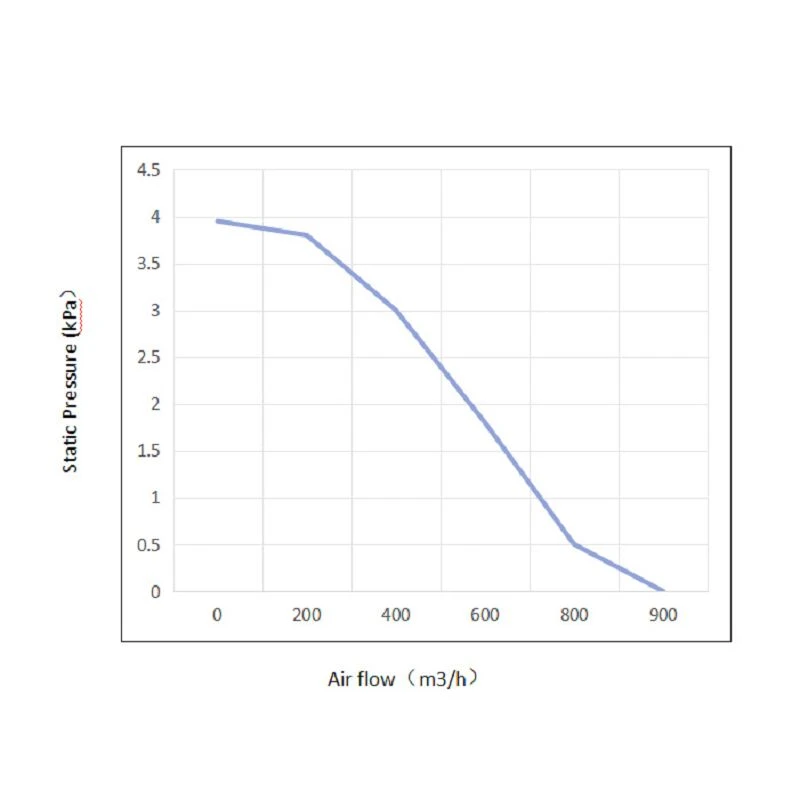

Max. Huab cua (m 3 / h)	850±5%
Max Static Siab (kPa)	4.1±5%
Rwb thaiv tsev Class	F
Chav kawm tiv thaiv	Tus IP 54
Ua hauj lwm hom	Tsis tu ncua
Min Pib-Up Voltage(V)	185
Ntau yam ceev (max, min) (r/min)	700-7200 (± 5%) @ 0 kpa

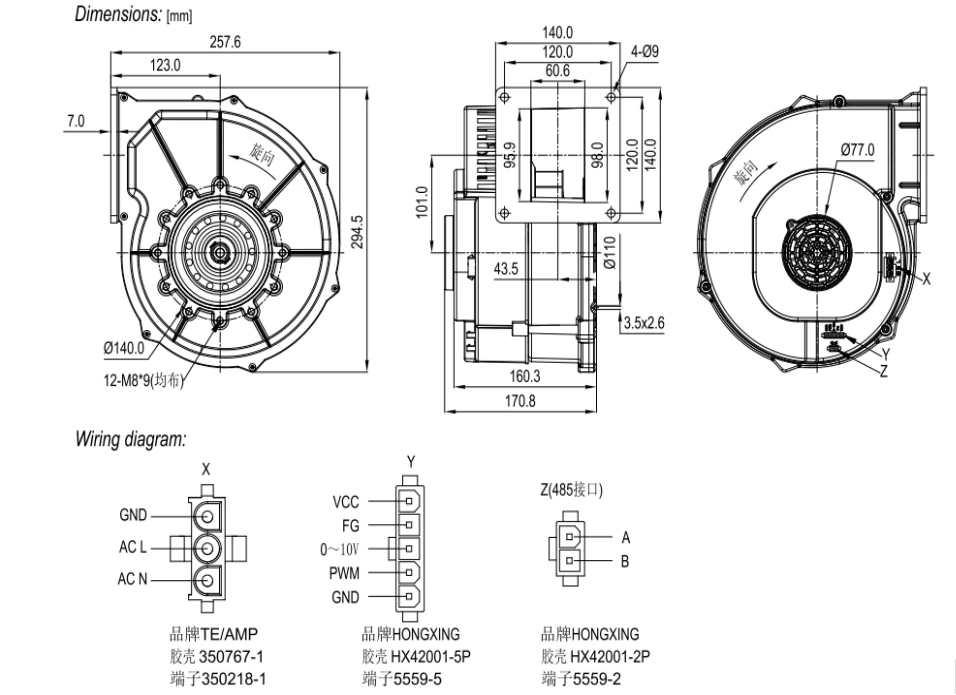

Kev tswj ceev hom	PWM / 0 ~ 10V DC / 485
Ua haujlwm ib puag ncig	Qhov kub thiab txias -20-60 degrees
	Humidity 15-85% RH Tsis Condensation
Tshuag Ib puag ncig	Qhov kub thiab txias -20-80 degree
	Humidity 15-85% RH Tsis Condensation

700W 220V Brushless Blower yog ib qho kev ua haujlwm siab -kev ua haujlwm zoo rau kev ua pa, tshem tawm plua plav, thiab cov khoom sib txuam. Xa mus txog 850 m³ / h airflow thiab 4.1 kPa static siab, nws sib npaug muaj zog nqus thiab ruaj khov tso zis zoo kawg nkaus. Txhawb nqa 0–10V, PWM, thiab RS485 ceev tswj nrog 1: 10.2 hloov pauv, nws ua kom muaj kev hloov pauv huab cua ncaj qha rau ntau yam txheej txheem.

Ua nrog IP54 kev tiv thaiv thiab Class F rwb thaiv tsev, lub tshuab blower no ua haujlwm zoo nyob rau hauv -20℃txog 60℃ib puag ncig, nrog overvoltage, overcurrent, stall, thiab overheat tiv thaiv kom tsis txhob muaj lub cev muaj zog. Cov pob bearings kaw kom ntseeg tau 18,000-teev kev pabcuam lub neej, thaum lub suab nrov yog txwv rau 93dB(A) thiab kev vibration kom tsawg dua lossis sib npaug li 4.0mm / s rau kev ua haujlwm du, tsis tshua muaj kev cuam tshuam.

700W 220V Brushless Blower tshem tawm cov pa roj carbon txhuam hnav, txo kev tu ncua kev xav tau ntau. Nws 220V ± 10% voltage kam rau ua rau cov khoom siv hluav taws xob tsis ruaj khov, thiab lub cev compact 6kg txuag chaw teeb tsa. Kev sim rau GB / T1236-2000 tus qauv, nws lav kev ua haujlwm zoo ib yam.

Rau kev txhim khu kev qha, ntev -kev ua haujlwm huab cua ntev, 700W 220V Brushless Blower yog koj qhov kev xaiv zoo tshaj plaws, sib txuas ua haujlwm zoo, ua haujlwm ntev, thiab kev nyab xeeb kom txo cov nqi khiav lag luam rau cov neeg yuav khoom thoob ntiaj teb.
